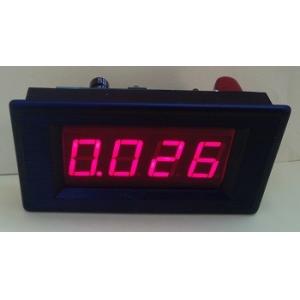

AC Digital multiple power meter panel watt KWh power factor Voltage current electricity consumption frequency

Name: AC Digital multiple power meter panel watt KWh power factor Voltage current electricity consumption frequency
Brand: Flytree
Price: 1420 USD

China AC Digital multiple power meter panel watt KWh power factor Voltage current electricity consumption frequency wholesale

Brand Name : Flytree

Model Number : FSM4-AC

Place of Origin : China

MOQ : 20 pieces

Price : USD 14 20 pieces, USD 13 50 pieces, USD 12 100 pieces

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 5000 pieces per 8 work days

current : 1A, 10A, 25A, 50A

energy : solar

Contact Now

6 in 1 AC electric paramter gauge, measure active power watt, estimated annual electricity consumption KWH (power eclectricity consume by 365days**hours per one year), power factor, Voltage, Current, frequency, actual electricity consumption KWH and time counting .

Pressing switch button in the back can choose different parameter display.

Memory store after power off : Meter can store the last switch button setting even after power down. Fox example, you set the switch button to power watt, then power off. After power on, the meter will be still in the status of power watt measure.

No need for additional power input, just share the power of the unit under measure.

Size: 43x79x33mm

Panel cut-off size: 41 x 77mm

Power supply	AC75－265V 50/60HZ or DC15V-500V
Display item	Active single phase AC voltage, current, power watt, power factor, frequency, electricity, apparent power watt, running time etc
Voltage/current range	Voltage:75-265V Current: 1/10/50A
Accuracy	Voltage:±0.5%FS±2bits
	Current: ±0.5%FS±2bits
	Wattage: ±0.5%FS±2bits
	Power factor: ±0.5%FS±2bits
	Frequency: ±0.5%FS±2bits
	Electricity: ±1%FS±2bits
	Running time: ±1%FS±2bits
communication	RS 232 TTL ( option)

Wire connection:

AC Digital multiple power meter panel watt KWh power factor Voltage current electricity consumption frequency Images
